Ryūjin Protector

Ryūjin Protector is an open-source Bin2Bin obfuscation, protection, and DRM tool for Windows PE binaries targeting the Intel x64 architecture (x86_64 only).

---

Overview

Ryūjin is a research-grade protector and obfuscator built to explore Bin2Bin transformation techniques. It is suitable for security researchers, reverse engineers, anti-cheat and anti-tamper developers, and others studying binary protection. Ryūjin focuses on transforming binaries while preserving original program semantics.

---

Features

• Junk code insertion and code mutation (randomized while preserving original logic)
• IAT call access obfuscation (with obfuscated handler access)
• Random section naming (default: Ryujin)
• Mathematical operator virtualization (Ryūjin MiniVM)
• Mathematical operator virtualization with Hyper-V isolation (MiniVM + Hyper-V)
• Encrypted code sections (TeaDelKew algorithm)
• Anti-debug (user-mode and kernel-mode)
• TrollReversers (can induce BSOD during reversing attempts)
• Anti-dump protections
• Anti-disassembly and anti-decompiler techniques
• Memory integrity protection (CRC32-based)
• Custom pass support (includes MBA-linear Obfuscation Pass and community passes)
• And more, see the wiki for a complete list

---

Demos and Presentations

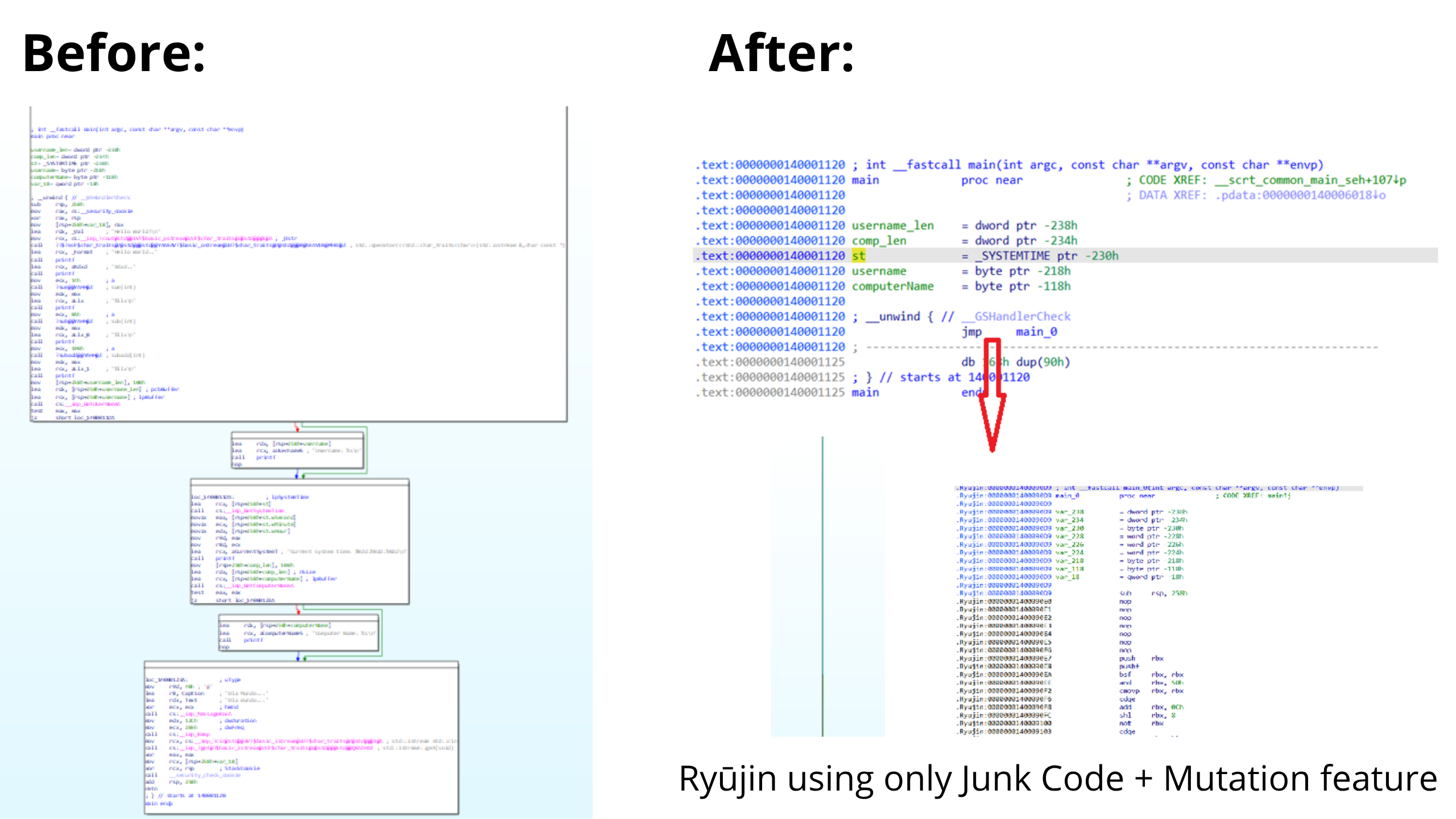

Ryūjin is intended primarily as a study and research tool. Below are small demos showing a main function before and after a Ryūjin pass:

This demo shows one feature; combining multiple features produces stronger obfuscation. See the Ryūjin Wiki for full examples and explanations.

Modes of use

Ryūjin supports both CLI and GUI:

• CLI: Full functionality and advanced options for expert/research users.
• GUI: Simplified interface for quick runs (requires wxWidgets).

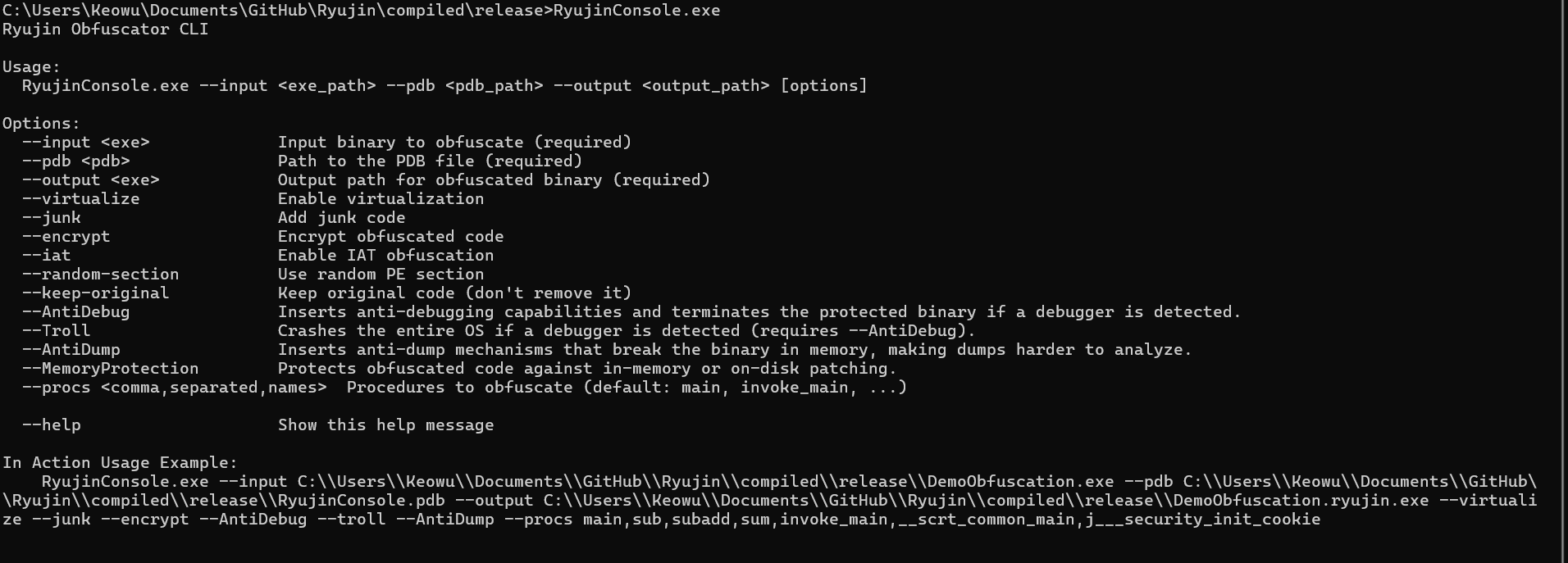

CLI demo:

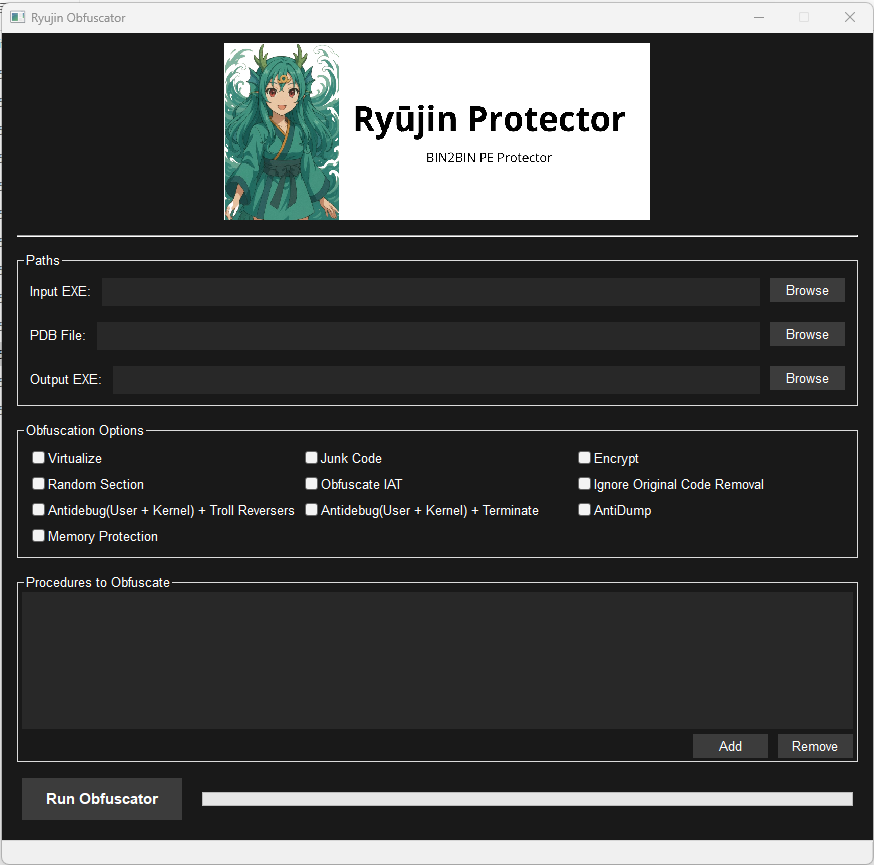

GUI demo:

Input requirements: a PE executable (EXE) for x64 and its PDB file containing symbols. The PDB is required to enable several transformation passes that rely on symbol information.

---

Custom Pass Support

Ryūjin supports custom passes through a simple callback model. A custom pass receives a RyujinProcedure instance and can modify basic blocks, scopes, or other procedure-level structures.

Example callback signature:

void RyujinCustomPassDemo(RyujinProcedure* proc);

See the class definition here:
RyujinProcedure.hh.

Example usage is included here:
RyujinCustomPasses.hh.

No additional configuration changes are required. RyujinObfuscatorConfig already exposes the settings needed to register and run custom passes.

---

Ryūjin Bin2Bin Obfuscator Core - Structure/Design Diagram

---

Dependencies

Install dependencies via Microsoft vcpkg:

vcpkg install asmjit
vcpkg install zydis
vcpkg install z3

Recommended versions for a consistent build environment:

asmjit:x64-windows - 2024-06-28
zycore:x64-windows  - 1.5.0
zydis:x64-windows   - 4.1.0
z3:x64-windows      - 4.13.0

Optional dependency for the GUI:

• wxWidgets - obtain from https://wxwidgets.org/downloads/

---

Research Paper

To better understand Ryūjin, please read the research paper: Ryūjin - Writing a Bin2Bin Obfuscator from Scratch for Windows PE x64 and Fully Deobfuscating It

---

Getting Started

For usage examples, flags, advanced options, and full explanations of each feature, see the
Ryūjin Wiki.

---

Detection & Analysis

Found malware protected with this? Wondering what to do?

Read the article carefully. from start to finish, don’t skip any part. and you’ll be fully prepared to analyze malware protected with this project.

This section is reserved for the write-up of the first company that identifies and successfully reverses malware using this project.

---

Licenses

• Ryujin and all its components are distributed under the GPL-2 license.
• Ryujin’s paper is distributed under the CC BY 4.0 license.
